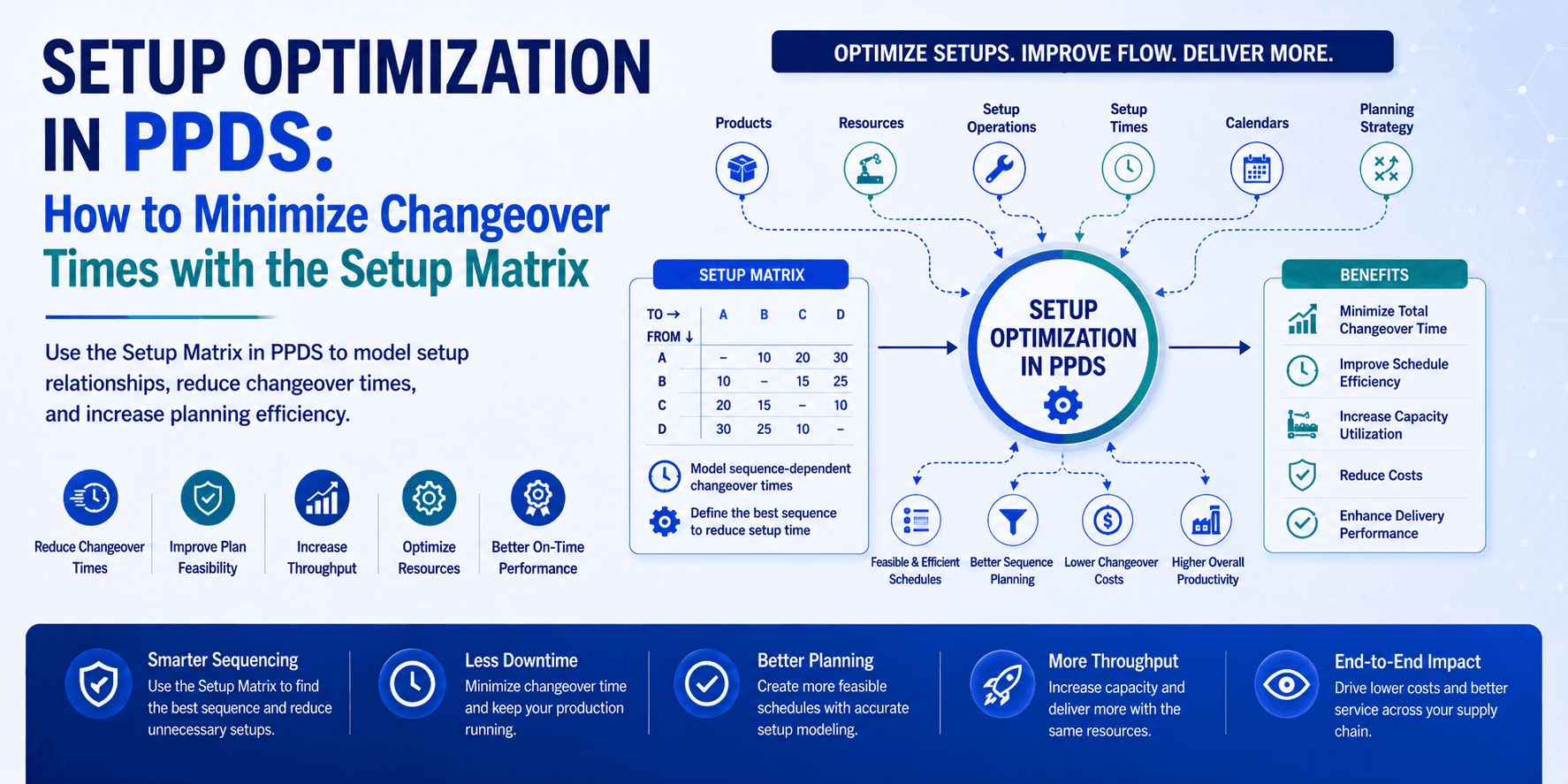

Setup Optimization in SAP PPDS: How to Minimize Changeover Times with the Setup Matrix
Introduction
If you have ever watched a production line grind to a halt while operators scramble through a lengthy color-change or product-grade switchover, you already understand the real cost of poor setup management. In discrete and process manufacturing alike, changeover time is one of the most significant and frequently overlooked sources of production waste. SAP PP/DS Production Planning and Detailed Scheduling addresses this head-on through its powerful Setup Matrix, a tool that allows planners to model, sequence, and ultimately minimize the time and cost associated with every machine transition.
This article walks you through exactly how the Setup Matrix works inside SAP PPDS, how to configure it correctly, and how to use it as the backbone of a sequence-optimized production schedule. Whether you are a production planner stepping into PP/DS for the first time or a seasoned SAP consultant preparing for migration, the content here is directly applicable.
⚡ Quick Facts — SAP PPDS Setup Matrix
- Setup matrices are defined at the resource level in PP/DS
- Changeover times can be both time- and cost-dependent
- Setup groups replace individual order-to-order comparisons
- The optimizer uses setup costs as a ranking variable
- CM25 was the classic planning board now being sunset
- S/4HANA PP/DS uses the Production Scheduling Board
- Setup transitions can be asymmetric (A→B ≠ B→A)
- Up to 999 setup groups can be defined per resource
📖 Key Definitions
Setup Matrix: A configuration table in SAP PP/DS that defines the time and cost required to transition a resource from one setup state (setup group) to another. It is attached to a resource and consulted by the PP/DS optimizer during scheduling to sequence production orders in a way that minimizes total changeover effort.
Setup Group: A classification assigned to an operation or activity type that represents a particular machine state — for example, a specific color, temperature profile, or product family. Setup groups are the "from" and "to" dimensions of the setup matrix, meaning the system looks up changeover duration based on which group is leaving and which group is arriving on the resource.
Sequence-Dependent Setup: A scheduling scenario in which the changeover time between two consecutive production orders depends not just on the product being made next, but also on the product that was just completed. For example, switching from a light-colored paint to a dark-colored paint may take five minutes, while the reverse transition takes forty-five minutes. SAP PP/DS handles this asymmetry natively through the setup matrix.
Why Changeover Time Is a Strategic Problem
In most manufacturing environments, changeover time is treated as a fixed, unavoidable overhead — something to be tolerated rather than managed. This mindset is costly. When you aggregate all the small transitions across a busy resource over a month, the total hours lost can dwarf the time spent on actual value-added production. Industries such as food and beverage, specialty chemicals, plastics, and automotive components are particularly exposed because their products frequently share equipment but differ significantly in formulation, color, or specification.
The traditional SMED (Single-Minute Exchange of Die) methodology reduces individual changeover durations through physical process improvements. SAP PP/DS complements SMED at the planning level: even if you cannot change how long each transition physically takes, you can control the sequence of orders to favor transitions that are cheap and avoid those that are expensive. That is exactly what the Setup Matrix enables.
Real-world impact:
A mid-size plastics manufacturer that implemented setup-matrix-driven sequencing in PP/DS reported a 23% reduction in total weekly changeover time — not by speeding up individual changeovers, but purely by reordering production sequences to favor low-cost transitions.
How the SAP PP/DS Setup Matrix Works
At its core, the Setup Matrix is a two-dimensional lookup table. One axis represents the setup state the resource is currently in (the "from" state), and the other axis represents the setup state the resource needs to be in for the next order (the "to" state). Each cell in the matrix contains a duration — the changeover time — and optionally a setup cost that the optimizer can use as a penalty function.
An Illustrative Example
Imagine a reactor used to produce three chemical grades: Grade A (standard), Grade B (intermediate purity), and Grade C (high purity). The cleaning protocol differs dramatically depending on sequence. Moving from C down to A requires a full solvent flush; moving from A up to C only requires a standard rinse.
| FROM \ TO | Grade A | Grade B | Grade C |
|---|---|---|---|
| Grade A | 0 min | 15 min | 20 min |
| Grade B | 40 min | 0 min | 15 min |
| Grade C | 90 min | 75 min | 0 min |
The table above illustrates the asymmetry that makes sequence-dependent setups so powerful. The system knows that C→A costs 90 minutes, while A→C costs only 20 minutes. A smart scheduler will cluster all Grade C orders at the end of a campaign and all Grade A orders at the beginning, dramatically reducing total transition time.
Configuration: Building the Setup Matrix Step by Step
Step 1: Define Setup Groups (Transaction: CY41 or Resource Master)
Navigate to the resource master and create your setup group key figures. Each group corresponds to a distinct machine state. Keep naming conventions clear and aligned with shop-floor terminology — your operators will need to recognize them on planning boards.
Step 2: Create the Setup Matrix Object
In PP/DS Customizing (SPRO), define the setup matrix ID and attach it to the relevant resource. One matrix can be shared across multiple resources with identical setup profiles, reducing maintenance overhead.
Step 3: Populate the Transition Cells
Enter duration (in minutes) and cost for each from/to combination. For combinations that are physically difficult, enter a prohibitively high cost rather than blocking the transition outright, giving the optimizer flexibility while still deterring it.
Step 4: Assign Setup Groups to Operations in the Master Recipe or Routing
Each operation that runs on the matrix-enabled resource must be assigned the appropriate setup group key. This is done in the PPM (Production Process Model) or in the routing via the PP/DS-specific fields. Without this assignment, the system cannot look up the correct matrix cell.
Step 5: Activate Setup Optimization in the Scheduling Profile
In the PP/DS heuristic or optimizer profile, enable sequence-dependent setup consideration. You can control the weight the optimizer places on setup cost versus other objectives like due-date adherence.
Step 6: Validate with Test Scenarios Before Go-Live
Run a set of representative order mixes through the scheduler and manually verify that the sequence chosen by the system reflects what experienced planners would pick intuitively. Discrepancies usually indicate a data entry error in the matrix or an incorrect setup group assignment.
🎓 SAP PP/DS Training
New to PP/DS or preparing your team for S/4HANA? Our structured SAP PP/DS training program covers setup matrices, heuristic profiles, optimizer configuration, and the Production Scheduling Board from foundation to advanced topics.
The PP/DS Optimizer vs. Heuristics: Which Should Drive Setup Sequencing?
PP/DS offers two primary scheduling engines: heuristics (rule-based algorithms such as "schedule in due-date order") and the PP/DS optimizer (a mathematical programming engine that solves for the best possible sequence given constraints and objective weights). Both can consume setup matrix data, but they behave very differently.
Heuristics are fast and predictable. A setup-aware heuristic like the setup group sequencing heuristic will group orders by setup group before scheduling, reducing transitions. This is an excellent default choice for environments with frequent replanning and time-sensitive order books. It runs in seconds and delivers results a planner can easily explain to the shop floor.
The optimizer, by contrast, treats setup cost as part of a multi-objective function. It can juggle setup minimization alongside due-date compliance, resource utilization, and inventory levels simultaneously. The trade-off is computation time: for large order sets, optimizer runs can take minutes to hours. Use it for overnight batch planning runs or for critical resources where finding the mathematically optimal sequence is worth the wait.
Best practice:
Many high-performing PP/DS implementations use the optimizer for weekly campaign planning and heuristics for intraday re-scheduling when urgent orders arrive. The optimizer sets the structure; heuristics adapt it in real time.
CM25 and the Production Scheduling Board: A Note on Tooling
For years, the transaction CM25 was the workhorse planning board where schedulers visualized resource loads, manually dragged orders, and reviewed setup transitions on a Gantt chart. CM25 was part of SAP APO and, later, embedded PP/DS in S/4HANA. However, CM25 is now at end of life as part of SAP's broader platform consolidation.
The modern replacement is the Production Scheduling Board in SAP S/4HANA, which is built on the SAP Fiori framework and offers a more intuitive, browser-based experience. Setup transitions and setup matrix data are fully visible in the new board, and the interface makes it easier to see the impact of manual resequencing in real time.
🔄 APO PP/DS to S/4HANA Migration Guide | CM25 End of Life
Planning your migration from SAP APO PP/DS to embedded S/4HANA PP/DS? Our detailed migration guide covers CM25 retirement timelines, data migration for setup matrices and PPMs, the new Production Scheduling Board, and how to prepare your team before cutover. Visit: /apo-ppds-to-s4hana-migration-guide
Common Mistakes That Undermine Setup Matrix Effectiveness
Treating the Matrix as a One-Time Configuration
Changeover times change as machines wear, as operators improve, and as products evolve. A setup matrix that was accurate at go-live three years ago may no longer reflect shop-floor reality. Build a quarterly review process into your maintenance calendar where shop-floor data (actual changeover times from MES or shop-floor feedback) is compared against matrix values and corrections are made.
Using Too Many or Too Few Setup Groups
If every product gets its own setup group, the matrix becomes enormous and impractical to maintain. If groups are too broad, the optimizer loses the granularity it needs to make meaningful sequencing decisions. As a practical rule: if the changeover time between two products is consistently within 10% of each other, they can share a group. Outliers warrant their own classification.
Ignoring Setup Carry-Over Across Shifts
PP/DS can model setup carry-over — the ability to remember the setup state of a resource even after it goes idle across a shift boundary or weekend. Failing to configure this means the system assumes every Monday morning that the resource is in an unknown setup state, often triggering unnecessary full-setup activities in the planned schedule.
Overlooking the Interaction Between Setup and Capacity
Setup time consumes capacity on the resource. If your routing does not correctly book setup time as a capacity-consuming activity, the resource will appear over-utilized in reports even when the actual schedule is feasible. This is a common source of conflict between planners and shop-floor supervisors who see the planned schedule as impossible.
Connecting Setup Optimization to S/4HANA and the Future of PP/DS
SAP's strategic direction is clear: embedded PP/DS in S/4HANA is the future, and APO PP/DS is being phased out. The good news for planners invested in setup matrix expertise is that all core setup optimization functionality — setup groups, setup matrices, sequence-dependent scheduling, and optimizer profiles — carries over to S/4HANA with minimal conceptual change. The data model is similar, the Customizing paths are analogous, and the logic the optimizer applies is equivalent.
What does change is the user interface, integration architecture, and peripheral tooling. The Production Scheduling Board replaces CM25. The integration with SAP MES, SAP IBP, and third-party systems is handled through updated APIs rather than the CIF connector that APO relied upon. If your organization is currently running APO PP/DS, now is the time to audit your setup matrix data quality, document your setup group taxonomy, and plan how that configuration will be transported and validated in the S/4HANA environment.
Organizations that treat the migration as a simple technical lift-and-shift — moving data without reviewing its accuracy — often find that poor setup matrix data, harmless in a system that was already underutilized, becomes a highly visible problem in S/4HANA where deeper optimization is suddenly possible and expected.
Measuring the Impact: KPIs for Setup Optimization
Total Weekly Changeover Hours
The aggregate time spent on all setups across all matrix-enabled resources. This is your headline metric. A well-tuned system should show a declining trend in the first three to six months as the optimizer learns typical order mixes.
Average Changeover Cost per Order
Divide total setup cost (from the matrix) by the number of orders scheduled. Trending this figure over time reveals whether order mix changes are introducing more expensive transitions, even if total volume is constant.
Setup Adherence Rate
The percentage of planned setup transitions that match the actual sequence executed on the shop floor. A low adherence rate signals that planners or supervisors are overriding the optimized sequence — often for good reasons but sometimes out of habit.
OEE Impact
Setup time is a direct deduction from Overall Equipment Effectiveness availability. Track whether improved sequencing is moving your OEE availability component in the right direction.
Frequently Asked Questions
Q: What is the difference between a setup group and a setup key in SAP PP/DS?
A setup group is a classification that groups operations with similar machine-state requirements — for example, all products in the light color family. A setup key is a specific value within a setup group category. The matrix uses combinations of setup keys to look up changeover durations. Think of the group as the category and the key as the specific value within it.
Q: Can one resource have multiple setup matrices assigned?
No. A resource in SAP PP/DS can have only one active setup matrix at a time. However, that single matrix can contain all necessary from/to combinations. If your resource handles very different product families, use a well-structured setup group taxonomy to capture all relevant transitions within the single matrix.
Q: How does the PP/DS optimizer use setup cost versus setup duration?
The optimizer's objective function can weight both duration (minimizing total changeover time) and cost (minimizing total changeover cost). In practice, most implementations use cost as the primary signal because it allows planners to encode business priorities — some transitions may be short but resource-intensive, making them costly even if they are fast.
Q: Does SAP PP/DS support setup time that varies by shift or calendar?
Standard PP/DS setup matrices do not natively vary by shift or time of day. If shift-specific changeover times are critical, the common approach is to model them through alternative PPMs with different setup activity durations, and use planning rules or manual selection to apply the appropriate model based on the shift context.
Q: What happens in PP/DS if a setup group is not assigned to an operation?
If an operation has no setup group assigned, the system treats the transition to or from that order as requiring the maximum default setup time configured for the resource, or zero time if no default is set. Either way, the optimizer cannot apply matrix-based sequencing intelligence for that order, which is why complete setup group assignments in the master data are essential.
Q: Is the setup matrix available in SAP S/4HANA embedded PP/DS?
Yes. The setup matrix concept is fully supported in SAP S/4HANA embedded PP/DS. The configuration paths differ slightly from APO PP/DS — they are accessed through the PP/DS Customizing section under S/4HANA rather than through the APO Customizing tree — but the functional logic and data model are essentially the same. The Production Scheduling Board also displays setup transitions visually.
Q: How should we handle the CM25 retirement in our current PP/DS landscape?
Organizations still using CM25 should begin planning their transition to the SAP S/4HANA Production Scheduling Board. The practical steps include assessing which CM25 features your planners rely on daily, identifying equivalent functionality in the Fiori-based board, and running parallel operations during a validation period before fully retiring CM25. See the APO PP/DS to S/4HANA Migration Guide for a phased approach.
Q: What training is available for SAP PP/DS setup optimization?
Formal SAP training courses (such as SCM370 and the newer S/4HANA PP/DS courses) cover setup matrices at a conceptual and configuration level. For practitioners who need hands-on, scenario-based learning, our SAP PP/DS training program offers structured modules from beginner to advanced, with dedicated content on setup optimization and S/4HANA readiness.
Conclusion
The Setup Matrix in SAP PP/DS is not a peripheral feature — it is one of the most powerful levers available to production planners who want to turn scheduling into a genuine competitive advantage. By accurately modeling your changeover landscape, structuring meaningful setup groups, and allowing the PP/DS optimizer or heuristics to exploit that data, you can recover significant capacity that is currently being silently consumed by suboptimal production sequences.
The steps are straightforward: define your setup groups with the right granularity, populate the matrix with real changeover data, assign groups to your operations, activate setup optimization in your scheduling profiles, and build a process to keep the data current. Layer in the right KPIs and you have a closed-loop system that continuously improves.
As the industry moves toward SAP S/4HANA and the CM25 planning board gives way to the modern Production Scheduling Board, the core concepts here remain fully transferable. Setup optimization is not an APO-era relic — it is a foundational capability that belongs at the heart of every serious PP/DS implementation, now and in the future.
